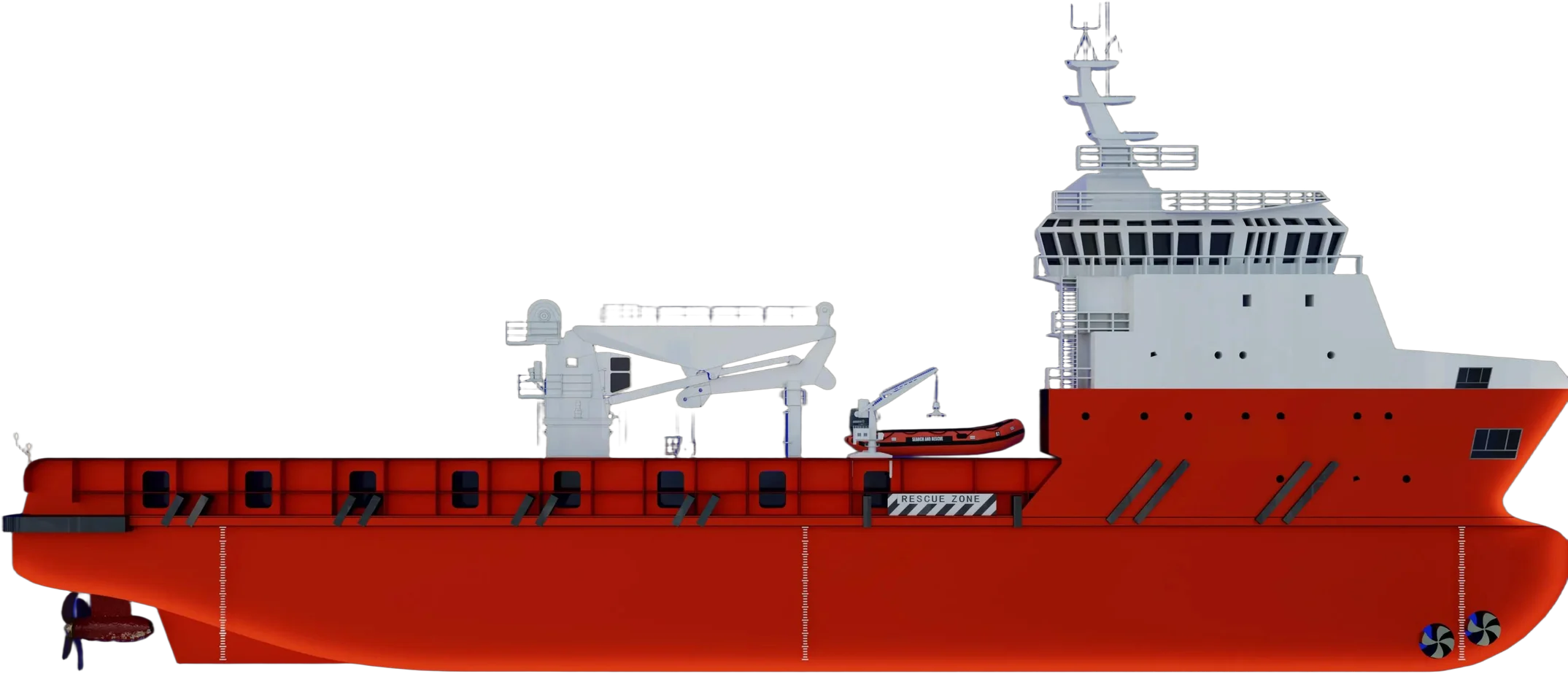

72 m DP2 multi-purpose support vessel
A large, strong aft deck, a heavy-lift crane and generous tank capacities, with accommodation for 59 persons.
- LOA
- 72.0 m
- DP class
- DP2
- Speed
- 11.5 knots
Suited to offshore construction support, supply, ROV and diving support, accommodation and field maintenance.
| Length × breadth × depth | 72.0 × 20.0 × 7.2 m |
|---|---|
| Design draught | 5.0 m |
| Service speed | 11.5 knots |
| Classification | IACS member society, DP2 notation |
| Clear deck area | 750 m² |
|---|---|
| Deck strength | 7.5 t/m² |
| Deck crane | 60 t @ 15 m · 15 t @ 20 m |
| Fuel oil | 1,600 m³ |
|---|---|
| Fresh water | 1,000 m³ |
| Ballast water | 1,500 m³ |
| Main engines | 2 × 1,800 kW @ 1,000 rpm, IMO Tier II |
|---|---|
| Azimuth propulsion | 2 × 360° units, Ø 2,500 mm FPP |
| Bow thrusters | 2 × 650 kW CPP, electric |
| Shaft generators | 2 × 1,000 kW |
| Generator sets | 3 × ~350 kW + 90 kW emergency |
| DP system | Dual DP station, DGPS × 2, VRU × 3, laser reference |
|---|---|
| UPS | × 2 |
| Persons on board | 59 |
|---|---|
| Cabins | 17 single + 21 double |
| Life-saving | 6 × 30-person liferafts, rescue boat |
Particulars relate to the reference concept and may be adapted to the owner's requirements. Images are illustrative.
